Architecture

Relaycode is built on a layered architecture designed to cleanly separate concerns between blockchain infrastructure, reusable UI components, and application-level routing and layout.

Three-Layer Architecture

1. Infrastructure Layer

The infrastructure layer handles all blockchain connectivity, client management, and wallet integration.

• Dedot Client — Relaycode uses Dedot as its Polkadot client (not the deprecated @polkadot/api). Dedot provides type-safe chain interactions via DedotClient<PolkadotApi>.
• Wallet Connection — LunoKit handles wallet integration, supporting Polkadot.js extension, Talisman, SubWallet, and other compatible wallets.
• Chain Switching — LunoKit's useSwitchChain() hook enables switching between Polkadot, Kusama, Westend, and other supported chains using genesis hash as the chain identifier.
• React Context — Providers expose the Dedot client, wallet state, and chain metadata to the component tree via React Context API.

2. Components Layer

The components layer provides reusable UI building blocks.

• Parameter Inputs — Specialized input components for each Substrate type (Account, Balance, Amount, Hash, Vector, etc.).
• Builder Components (components/builder/) — The extrinsic builder panes, pallet/method selectors, and encoding controls.
• Base UI (components/ui/) — shadcn/ui components providing consistent styling and behavior. These are generated via npx shadcn-ui add <component> and should not be modified directly.

Dedot Client Integration

Relaycode connects to Substrate chains exclusively through Dedot. The client provides:

• Type-safe metadata — Chain metadata is parsed into TypeScript types, enabling compile-time checks for pallet calls and storage queries.
• Codec registry — The client's registry provides codec lookup by type ID, used for encoding form values to SCALE and decoding hex back to form values.
• Type definitions — TypeDef discriminants are "Struct", "Enum", "Sequence", "SizedVec", "Tuple", "Primitive", "Compact", and "BitSequence". Note that Dedot uses these discriminants rather than polkadot-js terminology (e.g., "Struct" instead of "Composite").

Input Component Registry

The input component registry (lib/input-map.ts) uses a priority-based pattern matching system to map Substrate type names to the appropriate React input component.

How It Works

1. Each input component is registered with a set of patterns (exact strings or regular expressions) and a priority number.
2. When a type name needs to be rendered, findComponent() iterates the registry in priority order (highest first).
3. The first matching pattern determines which component renders the input.
4. Unknown types fall back to a plain text input.

Priority Ordering

Higher priority values are checked first, ensuring more specific types take precedence:

• Account (100) — AccountId, MultiAddress, etc.
• Balance (95) — Balance, Compact<Balance>, etc.
• Amount (90) — u32, u64, u128, Compact<u128>, etc.
• Hash variants — H160 (82), H256 (80), H512 (78)
• Collection types — VectorFixed (43) > BTreeMap (42) > BTreeSet (41) > Vector (40)

This ordering ensures that Compact<Balance> matches the Balance component (priority 95) rather than the Amount component's /Compact</ regex (priority 90).

See the Component Library for the complete priority table with all components.

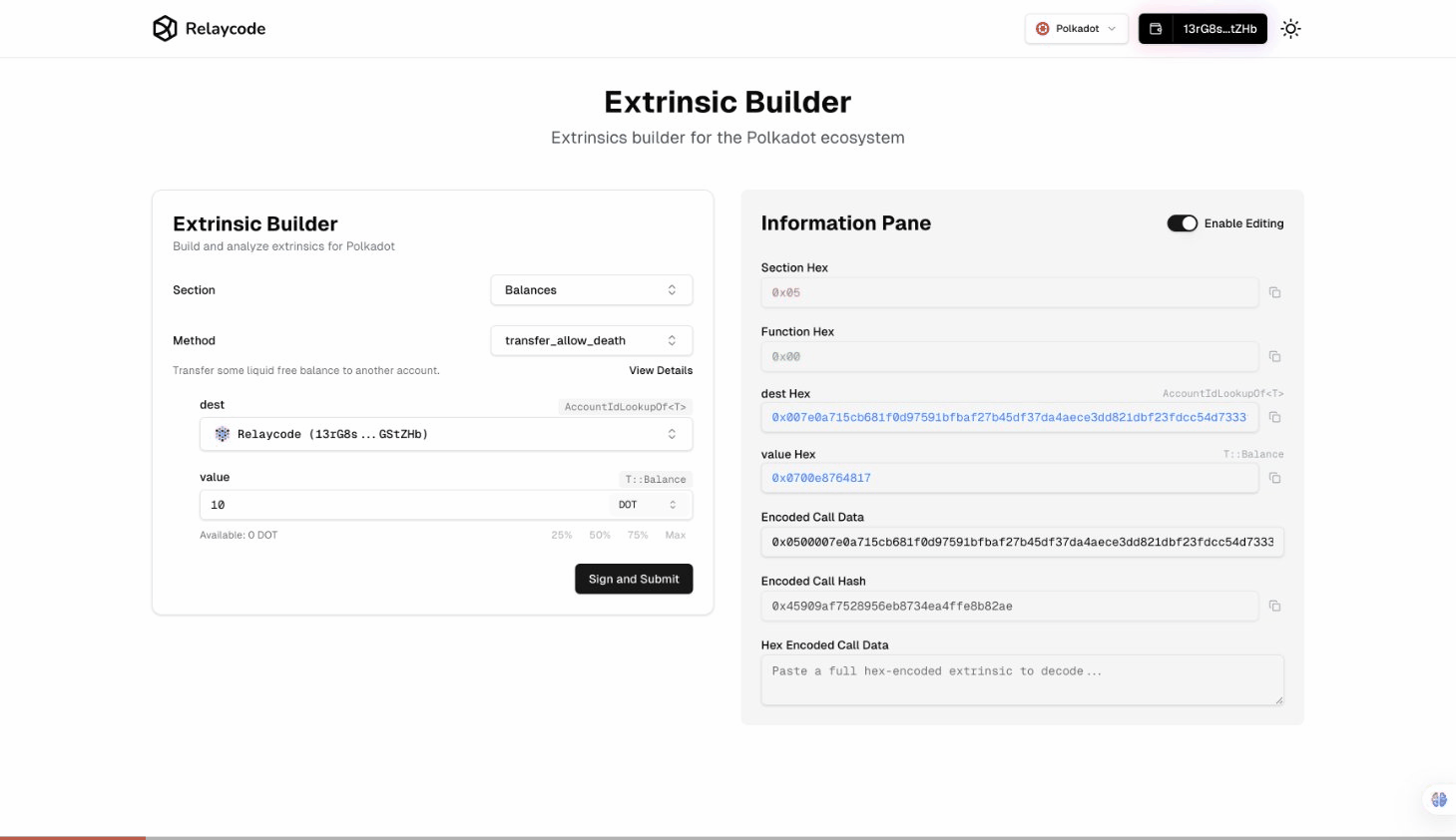

Dual-Pane Builder Interface

The extrinsic builder uses a side-by-side dual-pane layout:

• Form Pane (left) — Pallet selector, method selector, and dynamically rendered parameter inputs based on the selected call's metadata fields.
• Hex Pane (right) — Live preview of the SCALE-encoded call data, with an editable hex input for decoding in the reverse direction.

Changes in either pane sync to the other in real time, providing bi-directional editing.

Encoding/Decoding Flow

The encoding and decoding flow connects the form pane to the hex pane:

1. Form to Hex — When the user fills in form fields, each value is encoded via encodeArg() using the field's typeId from chain metadata. Individual hex results are concatenated with the pallet and method index bytes to produce the full call data.
2. Hex to Form — When the user pastes or edits hex in the hex pane, the call data is split into pallet index, method index, and argument bytes. decodeAllArgs() sequentially decodes each argument using the expected field types, populating the form fields.
3. Validation — Before encoding, validateAllArgs() checks each field value against type-specific rules (SS58 format for accounts, numeric ranges for amounts, hex format for hashes, etc.).
4. Value Coercion — Form inputs always produce strings. The codec module automatically coerces these to the types expected by Dedot codecs (e.g., "true" to true, numeric strings to BigInt).
